Push-To-Talk over Cellular
PTT over Cellular (PTToC or PoC) means that radio communication (walkie-talkie) is simulated via the smartphone’s data connection using an app. This means that you can communicate with all other users registered in the app. To be heard, you have to press a talk button, known as a push-to-talk button or PTT button, just like on a radio.
This has the advantage that communication does not take place via a conventional voice connection, but exclusively via the mobile data connection or via an existing router in the WLAN.
Your mobile phone thus becomes a communication device with PTT function! All participants can use their mobile phones as walkie-talkies with unlimited range. A typical push-to-talk connection is established almost instantly. A key advantage of the PTT function is that a single person can reach an active conversation group with a single press of a button; users do not have to make multiple phone calls to coordinate with a group.
We offer a range of wired devices with USB connectors or wireless devices with Bluetooth connectivity:
Surveillance kit for smartphones with USB-C connector
Personal protection kit with USB-C connector for smartphones and tablets

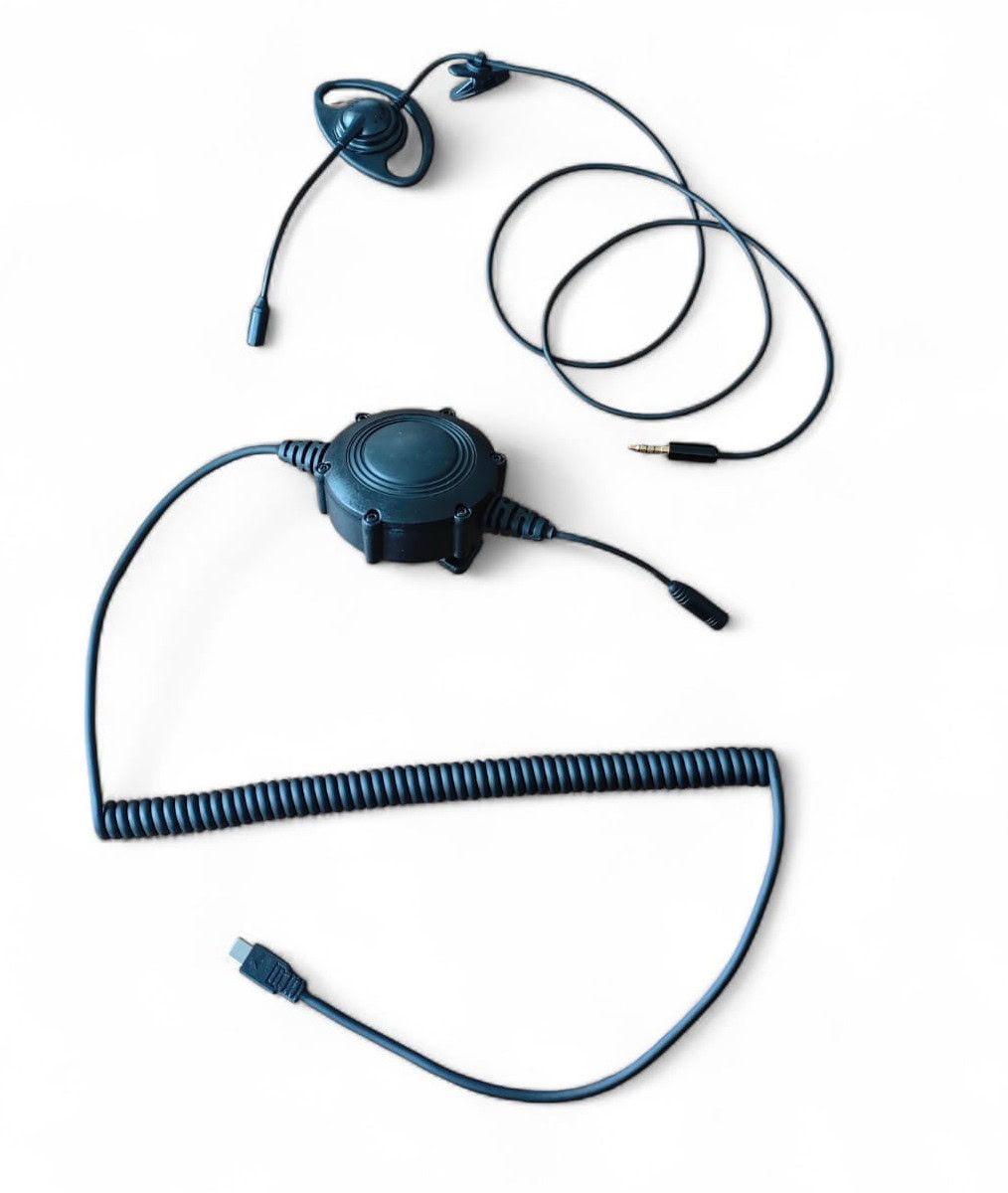

1-Wire Kit Headset with PTT talk button and emergency call button (only for GroupTalk app) with USB-C connector for Android and iOS PTT over Cellular PoC applications. With built-in microphone and sound tube earpiece.
With our jack adapter, we can also offer many other wired earphones.
Two versions are available:
-C0 for Zello, Buddycomm
-C3 for GroupTalk Android (PTT & SOS)
Specifications:
Power supply via USB-C connector (20mA)
MCU: MCU HID with audio CODEC
Functions: PTT, SOS
Product ID: VID/PID
Item no. HS-180-01
Handheld monophone with USB-C connector
Handheld unit – fist microphone – handheld monophone with USB-C connector for smartphones and tablets
Detachable handheld microphone/speaker control unit with spiral cable and USB-C connector for Android and iOS PTT over Cellular PoC applications. Two versions are available:
-C0 for Zello, Airbus Agnet, SONY Callsign, Buddycomm, GroupCom, Tassta, Android & iOS (PTT only)
-C3 for GroupTalk Android (PTT & SOS)
Specifications:
MCU HID with audio CODEC,
Power supply via built-in 1000 mAh battery, charging via Type-C, 500 mA, talk time: more than 40 hours, LED: RED when battery is low, OFF when fully charged
Connection: Type-C with spiral cable
Functions: PTT, emergency call, VOL+/-
Speaker: Amplification 2 watts, 108dB @10cm
The handheld monophone’s battery is charged via a USB-C socket. A USB-C cable (without 220V plug adapter) is included in the scope of delivery.
Item no. HS-110-21
Wireless-Bluetooth RSM
Wireless Bluetooth handheld microphone speaker
This wireless handheld microphone can be used with your smartphone or tablet via Bluetooth.
It can be used as a hands-free device for normal phone calls or WhatsApp calls. The microphone is then always open and the PTT normally has no function.
However, we also have a reprogrammed special version in our range which, when the PTT is pressed, switches the microphone on as with a radio and switches it off again when released. This prevents unwanted background noise from being transmitted continuously. This is an important feature, especially for telephone or WhatsApp conferences.
Furthermore, the standard version of the RSM can also be used for apps such as Zello, Zebra and Buddycom, among others!
The handheld microphone has a large, powerful speaker and a microphone on the front. On the right-hand side, there is a talk button and an emergency call button, and on the left-hand side, there is a volume control with push buttons.Â
On the back is a large, robust and rotatable clip so that the handset can be positioned optimally on clothing. It is also equipped with a 3.5 mm jack socket for connecting standard headphones, earphones or sound tubes. The handset’s battery is charged via a USB-C socket.
A USB-C cable (without 220V plug adapter) is included in the scope of delivery.
Item no.: HS-110-20 (radio, Zello)
Item no.: HS-110-22 (radio, telephone PTT)
Bluetooth PTT Adapter
Wireless Bluetooth PTT transmit button adapter
Wireless PTT transmit button adapter with clip for our BT radio dongles or other Bluetooth devices such as smartphones. The adapter has a built-in microphone and a 3.5 mm jack socket for connecting conventional headphones or headsets. This means that earphones or our Near special earphones can also be connected. The adapter detects when a headset is connected and automatically switches from the built-in microphone to the headset microphone. This means that our adapter can also be combined with our ear microphone system or induction system, for example.
This provides a modular system that can be used for personal protection as well as for concealed carrying during surveillance operations. Furthermore, it is possible to switch between mobile phone and radio at any time. This comes quite close to being a jack of all trades…
The adapter has buttons for volume control and call acceptance when making calls. In addition, our wireless external PTT buttons can also be used. When used with a smartphone, the PTT button can be used for various PoC apps such as Zello, Taasta, Wave PTX, Airbus Agnetwork, BTTALK, Buddycom, Grouptalk, Tait, Zebra, and many more.
Talk time is up to 10 hours, standby time up to 50 hours. The adapter’s battery is charged via a USB port. A USB cable (without 220V plug adapter) is included in the scope of delivery.
Dimensions: 65 mm x 30 mm x 12 mm, weight: 22 grams
Item no.: HS-201-05
Wireless multifunctional PTT unit with 3.5 mm jack socket and microphone
3.5 mm jack socket for connecting earphones or headsets (CTIA)
Internal/external microphone detection
Protection class: IP55
260 mAh Li-polymer battery
Magnetic USB charging cable
Optional charging via docking station
Volume control, LED display (three colours)
>12 hours of operating time (90% standby, 5% TX, 5% RX)
Range up to 10 metres (equivalent to BT 5.0 Class 2)Compatible with radio devices* e.g. from Icom, Sepura, Kenwood and Hytera, as well as numerous
PTT apps (PoC)*May require a corresponding licence,
programming or software version from the respective
manufacturerOptionally available with charging cradle. Up to 10 of these can be cascaded.
Item no.: HS-201-25 & HS-201-26
Neckband headsets with PTT button
BoneCom3 PTT wireless Bluetooth headset with bone conduction earpiece
This Bluetooth bone conduction headset is equipped with two bone conduction earpieces. This means that speech is not transmitted directly via airborne sound, but via vibrations through bone conduction. This leaves your ears free to hear other ambient sounds!
The headset is equipped with a PTT talk button that can be used for smartphone apps such as Zello with a talk button function. This simulates a walkie-talkie or classic radio operation on the mobile phone. These applications are also known as PTT over Cellular, abbreviated to PTToC or PoC. Voice communication is not handled via a normal phone call, but via the data plan.
The headset can only be used to a limited extent in noisy environments.
Item no.: HS-510-07
Shokz OpenComm 2 PTT wireless Bluetooth headset with bone conduction earphones
The Shokz OpenComm bone conduction headset is equipped with a boom microphone arm. It has a talk time of 16 hours, an IP55 protection rating and weighs only 33 grams. The headset also features Bluetooth 5.1.
Thanks to its excellent noise-cancelling microphone, it is particularly suitable for noisy workplaces when combined with customised in-ear hearing protection. Several different versions of Shokz bone conduction headsets are now available.
A version with a specially programmed PTT transmit button for Zello can be supplied on request!
Desk microphone speaker with mobile phone or tablet holder
Mobile table unit Imtradex MDU-Phone & MDU-Tab
Full-duplex capable & flexible mobile communication unit for control centres and control rooms
– Unique hands-free system and PTT function
– Flexible gooseneck microphone with crystal-clear voice transmission
– Loudspeaker with high volume for noisy environments
– Plug & Play: Effortless integration of smartphones or tablets with standard USB connection
– Direct communication via the PTT button for PTToC applications
– High-quality construction, durable and robust
– Optimised for the requirements of critical operations
– Non-slip for maximum stability
– In collaboration with Brodit mounts
Mobile Vehicle Unit Imtradex MVU
Full-duplex capable & flexible mobile communication unit for communication in vehicles
– Unique hands-free system and PTT function
– Flexible gooseneck microphone with crystal-clear voice transmission
– Loudspeaker with high volume for noisy environments
– Plug & Play: Effortless integration of mobile devices such as smartphones with standard USB connection
– Direct communication via the PTT button for PTToC applications
– High-quality construction, durable and robust
– Optimised for the requirements of critical operations
– In collaboration with Brodit mounts
